Name: battery rack

Material: angle iron

Dimension: according project to design

Use: stable battery group

Battery rack include tiered and stepped, according customers different requirement we give different design.

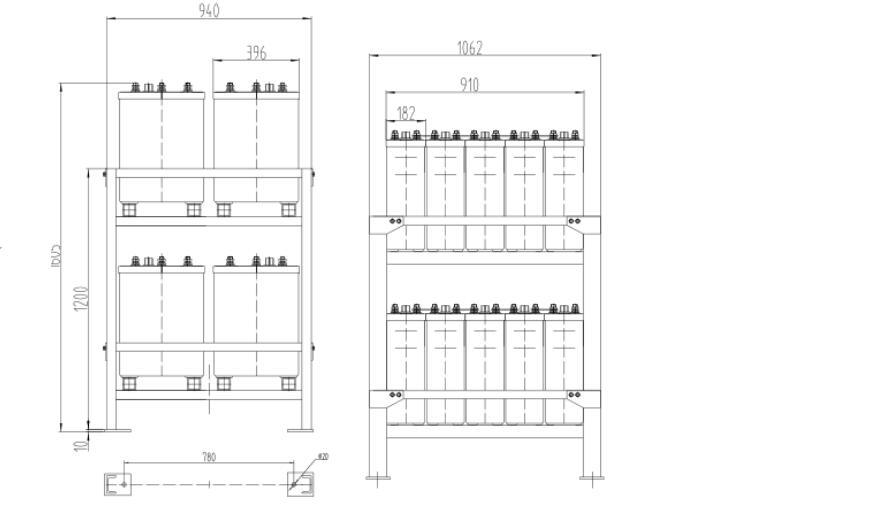

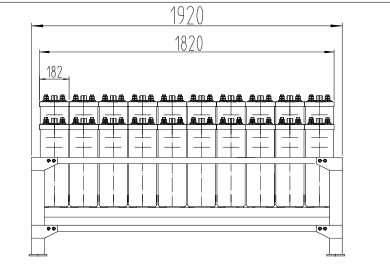

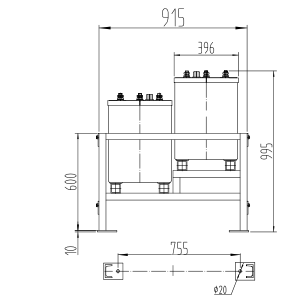

Following is a sample of stepped rack design.

1.This rack is composed of standard steel, the two brackets are welded together, and the rest are bolted and connected.

2. This rackis supplied in the form of spare parts, assembled on site, fastened, fixed, and the installed anchor bolts be provided by the user.
3. This rack is completely derusting, polished, and the final surface is sprayed with anti-rust paint, and the topcoat is twice black paint.
4. This rackis installed with 20 batteries, double-layer and double-row installation, 5 cells/row, and the single battery has a liquid weight of about 45.6kg.
5. The connector, dust cover,and the cables connected to the upper and lower rows according battery standard are provided.

FAQ:

1. packaging: Export dedicated plywood wooden cases
2. delivery time: 30days received 30% advance payment
3. accepted payment: T/T, LC.
