Standard voltage:
1.2VCharging current:
0.2C5AFeature:
1). Strong resistance to overcharge/over discharge
2). Long service life
3). Strong structure
Application:
1). Telecommunications
2). Railway signaling
Nominal Voltage | 1.2V | ||
Capacity(5HR,20℃) | 200Ah | ||
Dimension | Length | 165mm | |
Width | 105mm | ||
Height | 345mm | ||
Container | PP | ||
Approx. Weight | 10Kg | ||
Internal resistance (Fully charged, 20℃) | 1.25*10-3Ω | ||
Capacity affected by temperature (5HR) | 20℃ | ≥100％ | |
-18℃ | ≥80％ | ||
Self-discharge(20℃) | 3 month | ＜30％ | |
Nominal operating temperature | 20℃±5℃ | ||
Operating temperature range | –20℃～50℃ | ||
Float charging voltage(20℃) | 1.44 ～1.50V | ||
Maximum charging current | 40A | ||
Boost charge (20℃) | 1.65-1.70V | ||
Terminal material | Nickel- Clad Steel | ||
◆According to IEC cycle time is more than 500,
float charging life is more than 15 years.
◆PP container.

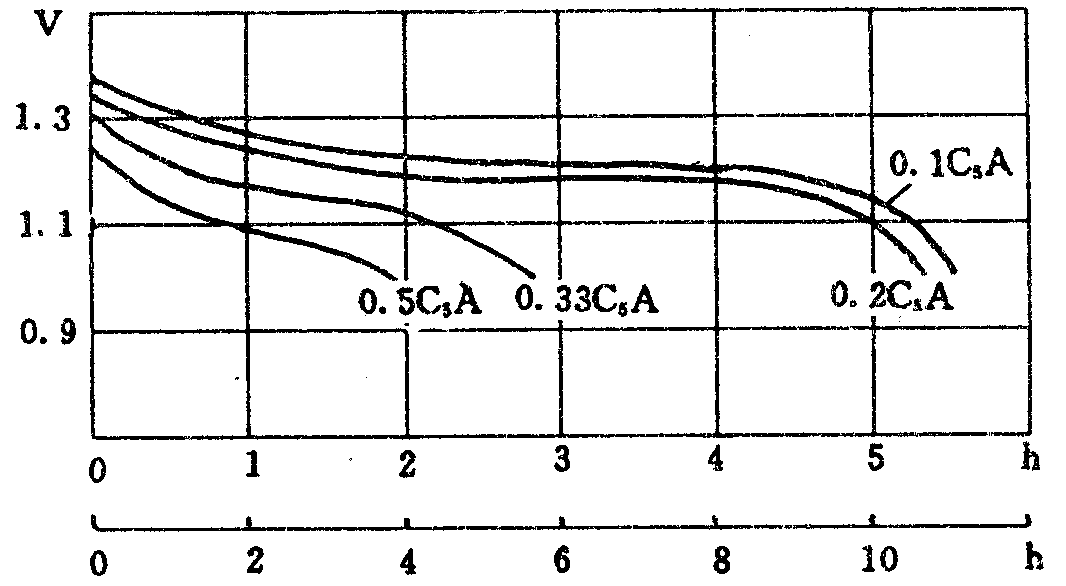

Constant Current Discharge Characteristics (A, 20℃)
F.V/TIME | 1sec | 5sec | 1min | 5min | 1h | 1.5h | 3h | 5h | 8h |
1.0V | 390 | 384 | 328 | 252 | 132 | 103 | 62 | 40 | 25.4 |
1.1V | 290 | 280 | 240 | 196 | 110 | 92 | 60 | 39 | 24.8 |
1.14V | 270 | 260 | 230 | 190 | 102 | 86 | 59.4 | 39 | 24.8 |
Place the battery in its location and connect the battery in series with connector. In the end, connect the last positive terminal with the positive lead of charger, and the negative terminal is connected with the charger’s negative lead. Mistake connection is forbidden.
